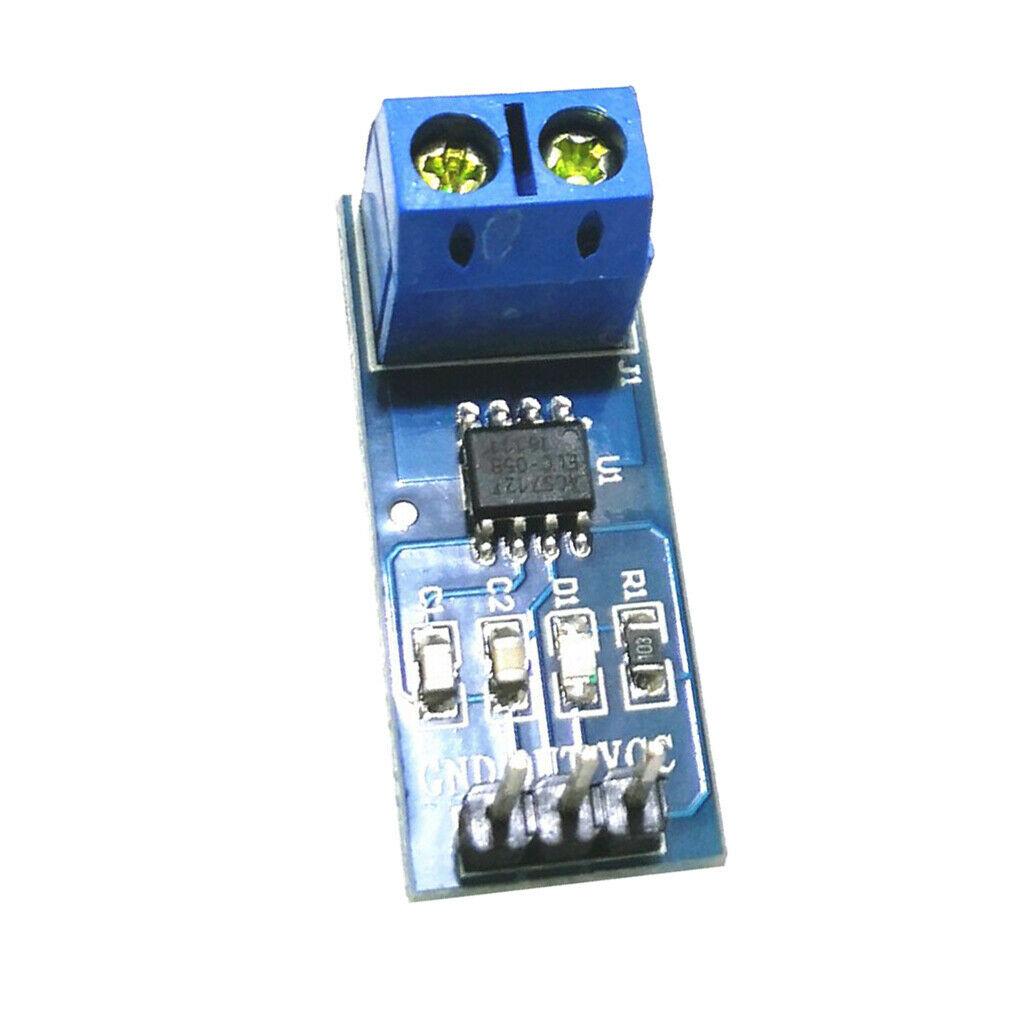

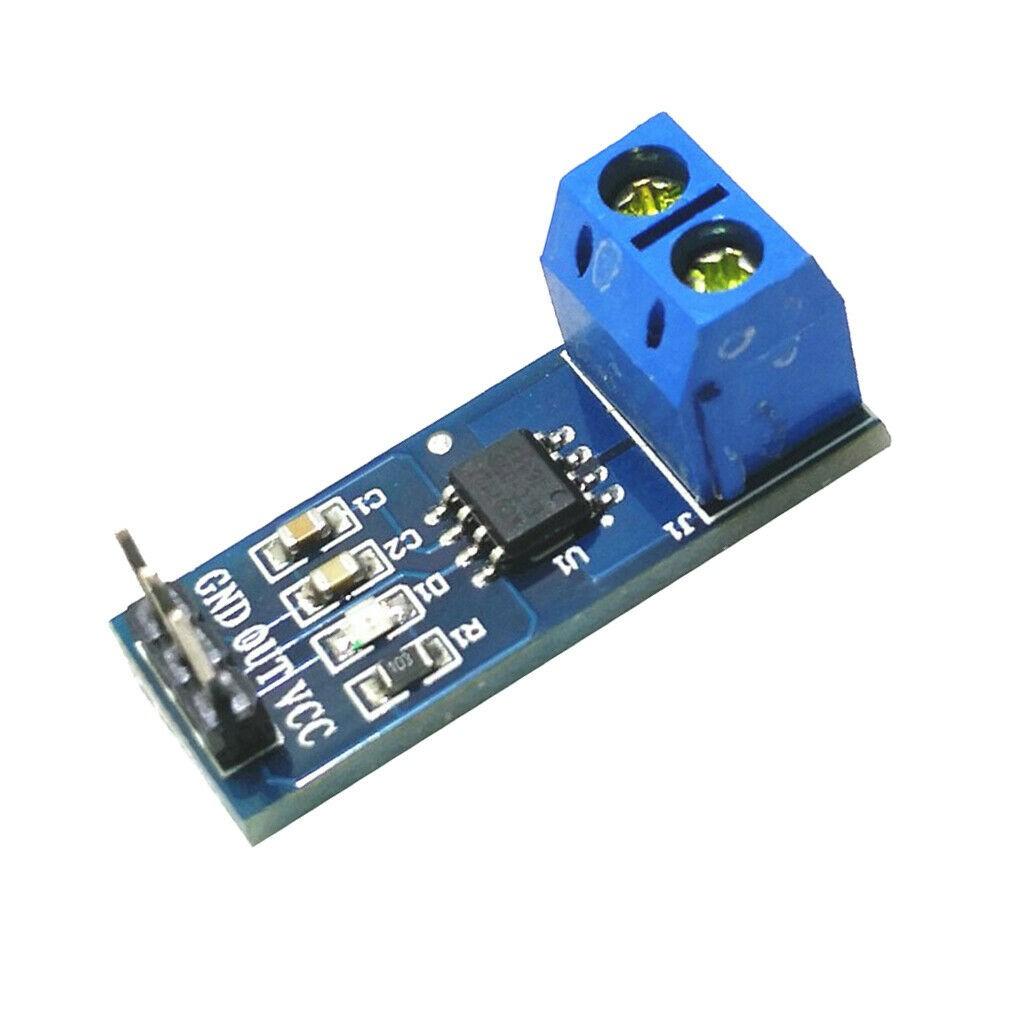

ACS712 30A Current Sensor Module can sense up to 30 A of current flow. Sensing and controlling the current flow is a fundamental requirement in wide variety of applications, which includes over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, programmable current sources, etc.
It is based on ACS712 sensor, which is precise, low-offset, linear Hall circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field in which the Hall IC converts into a proportional voltage.
Sensing and controlling current flow is a fundamental requirement in a wide variety of applications including, over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, programmable current sources, etc.
Features of ACS712 30A Current Sensor:
<ul>
<li>Nearly zero magnetic hystereses.</li>
<li>5.0 V, single-supply operation.</li>
<li>66 to 185 mV/A output sensitivity.</li>
<li>Output voltage proportional to AC or DC currents.</li>
<li>Factory-trimmed for accuracy.</li>
<li>Extremely stable output offset voltage.</li>
<li>The ratiometric output from the supply voltage.</li>
<li>2.1 kV RMS minimum isolation voltage from pins 1-4 to pins 5-8.</li>
</ul>
You may also look for:
<ul>
<li><a href="/product/acs712-20a/">ACS712 20A Current Sensor</a></li>
<li><a href="/product/acs712-5a/">ACS712 5A Current Sensor</a></li>
</ul>
Package Includes:
1 x ACS712 30A Current Sensor
<hr />
&nbsp;

ACS712 30A

FREE UK Delivery. Receive 50p off on each ACS712 &#8211; 30A if you buy more than one.
<hr />
Overview:
✔️ Supply Voltage: 4.5V ~ 5.5V DC
✔️ Measure Current Range: -30A ~ 30A
✔️ Sensitivity: 100mV/A
✔️ Low-noise analog signal path.
✔️ Power-On Time: 35us
✔️ 5 µs output rise time in response to step input current.
✔️ Small footprint, low-profile SOIC8 package.

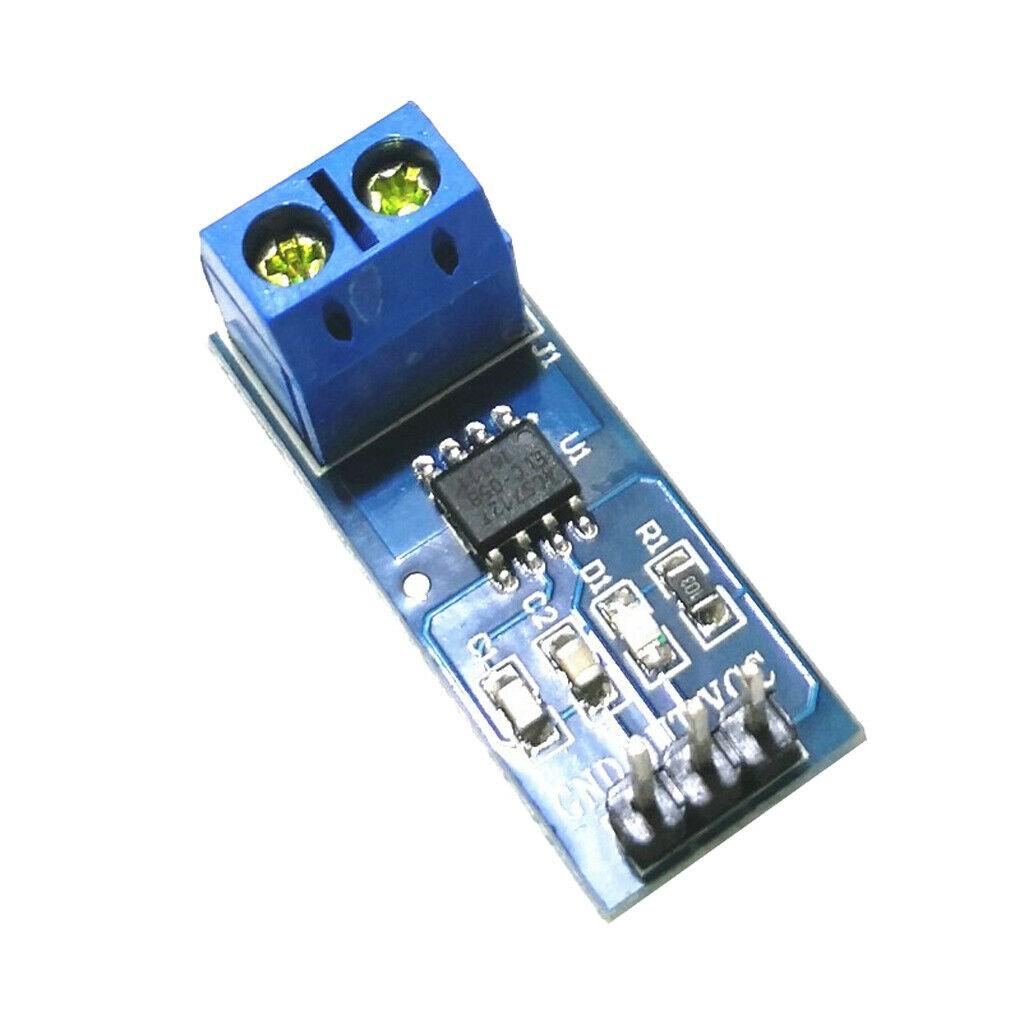

ACS712 20A Current Sensor Module can sense up to 20 A of current flow. Sensing and controlling the current flow is a fundamental requirement in wide variety of applications, which includes over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, programmable current sources, etc.
It is based on ACS712 sensor, which is precise, low-offset, linear Hall circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field in which the Hall IC converts into a proportional voltage.
Sensing and controlling current flow is a fundamental requirement in a wide variety of applications including, over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, programmable current sources, etc.
Features of ACS712 20A Current Sensor:
<ul>
<li>Nearly zero magnetic hystereses.</li>
<li>5.0 V, single-supply operation.</li>
<li>66 to 185 mV/A output sensitivity.</li>
<li>Output voltage proportional to AC or DC currents.</li>
<li>Factory-trimmed for accuracy.</li>
<li>Extremely stable output offset voltage.</li>
<li>The ratiometric output from the supply voltage.</li>
<li>2.1 kV RMS minimum isolation voltage from pins 1-4 to pins 5-8.</li>
</ul>
You may also look for:
<ul>
<li><a href="/product/acs712-30a/">ACS712 30A Current Sensor</a></li>
<li><a href="/product/acs712-5a/">ACS712 5A Current Sensor</a></li>
</ul>
Package Includes:
1 x ACS712 20A Current Sensor
<hr />
&nbsp;

ACS712 20A

FREE UK Delivery. Receive 50p off on each ACS712 &#8211; 20A if you buy more than one.
<hr />
Overview:
✔️ Supply Voltage: 4.5V ~ 5.5V DC
✔️ Measure Current Range: -20A ~ 20A
✔️ Sensitivity: 100mV/A
✔️ Low-noise analog signal path.
✔️ Power-On Time: 35us
✔️ 5 µs output rise time in response to step input current.
✔️ Small footprint, low-profile SOIC8 package.

ACS712 5A Current Sensor Module can sense up to 5A of current flow. Sensing and controlling the current flow is a fundamental requirement in wide variety of applications, which includes over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, programmable current sources, etc.
It is based on ACS712 sensor, which is precise, low-offset, linear Hall circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field in which the Hall IC converts into a proportional voltage.
Sensing and controlling current flow is a fundamental requirement in a wide variety of applications including, over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, programmable current sources, etc.
Features of ACS712 5A Current Sensor:
<ul>
<li>Nearly zero magnetic hystereses.</li>
<li>5.0 V, single-supply operation.</li>
<li>66 to 185 mV/A output sensitivity.</li>
<li>Output voltage proportional to AC or DC currents.</li>
<li>Factory-trimmed for accuracy.</li>
<li>Extremely stable output offset voltage.</li>
<li>The ratiometric output from the supply voltage.</li>
<li>2.1 kV RMS minimum isolation voltage from pins 1-4 to pins 5-8.</li>
</ul>
You may also look for:
<ul>
<li><a href="/product/acs712-30a/">ACS712 30A Current Sensor</a></li>
<li><a href="/product/acs712-20a/">ACS712 20A Current Sensor</a></li>
</ul>
Package Includes:
1 x ACS712 5A Current Sensor
<hr />
&nbsp;

ACS712 5A

FREE UK Delivery. Receive 50p off on each ACS712 &#8211; 5A if you buy more than one.
<hr />
Overview:
✔️ Supply Voltage: 4.5V ~ 5.5V DC
✔️ Measure Current Range: -5A ~ 5A
✔️ Sensitivity: 180mV/A ~190mV/A, Typical: 185mV/A
✔️ Low-noise analog signal path.
✔️ Device bandwidth is set via the new FILTER pin.
✔️ 5 µs output rise time in response to step input current.
✔️ Small footprint, low-profile SOIC8 package.

<div class="productView-table-row">

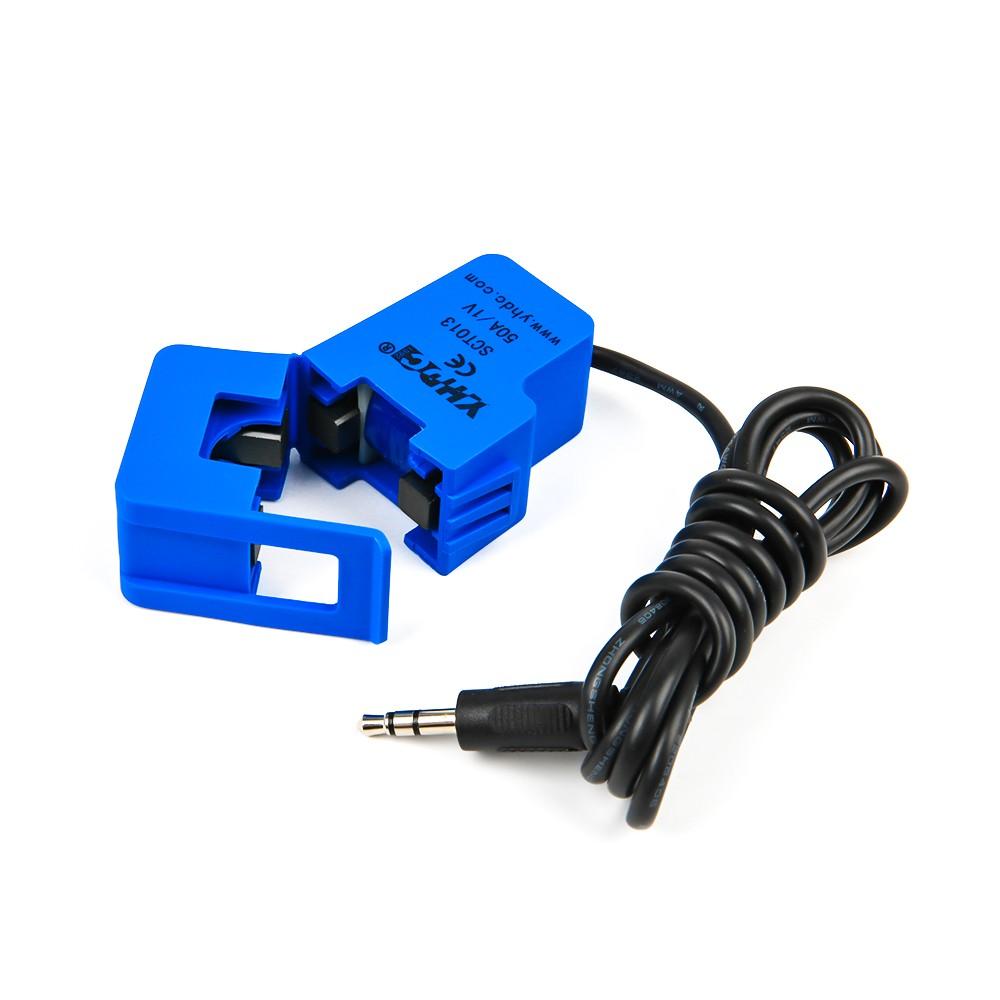

SCT-013 50A is a Non-invasive AC Current Sensor Transformer. It is a current transformer that can be used to measure AC current up to 100 amperes. This non-invasive current sensor clamped around the supply line can measure a load up to 50 Amps, and allow you to calculate how much current pass through it. It can be useful for building your own energy monitor or for building an over-current protection device for an AC load. SCT-013 50A can be used to detect a current of up to 50A. Simply clip it around the current source that you wish to measure and it will produce a (very) small AC voltage proportional to the current. The cable is terminated on one end with a standard 3.5mm jack (like a headphone jack).
Use this to build your own energy monitor and keep your power usage down, or use it to build an over-current protection device for an AC load. <a href="https://learn.openenergymonitor.org/electricity-monitoring/ct-sensors/interface-with-arduino">Useful information about SCT-013 Current Sensors</a>.
You may also look for:
<ul>
<li><a href="/product/sct-013-15a/">SCT-013-15A 15A Non-invasive AC Current Sensor Transformer</a></li>
<li><a href="/product/sct-013-30a/">SCT-013-030 30A Non-invasive AC Current Sensor Transformer</a></li>
<li><a href="https://www.bromleysat.com/product/sct-013-100a/">SCT-013-000 100A Non-invasive AC Current Sensor Transformer</a></li>
</ul>
Package Includes:
<ul>
<li>1 x SCT-013-050 50A Non-invasive AC Current Transformer</li>
</ul>
</div>
<hr />
&nbsp;

SCT-013 50A

FREE UK Delivery
<hr />
Overview:
✔️ Brand: YHDC
✔️ Clamp Opening: 13x13mm
✔️ Rated measurement input current: 50A
✔️ Maximum input current: 70A
✔️ Rated Output: 1V (at 50A)
✔️ Maximum rated voltage: 660V 50Hz-1kHz
✔️ Accuracy: +-1%
✔️ Linearity: &lt;=0.2%
✔️ Cable length: 1m
✔️ Dimensions: 5.6&#215;3.1&#215;2.1cm
✔️Weight: 63g

<div class="productView-table-row">

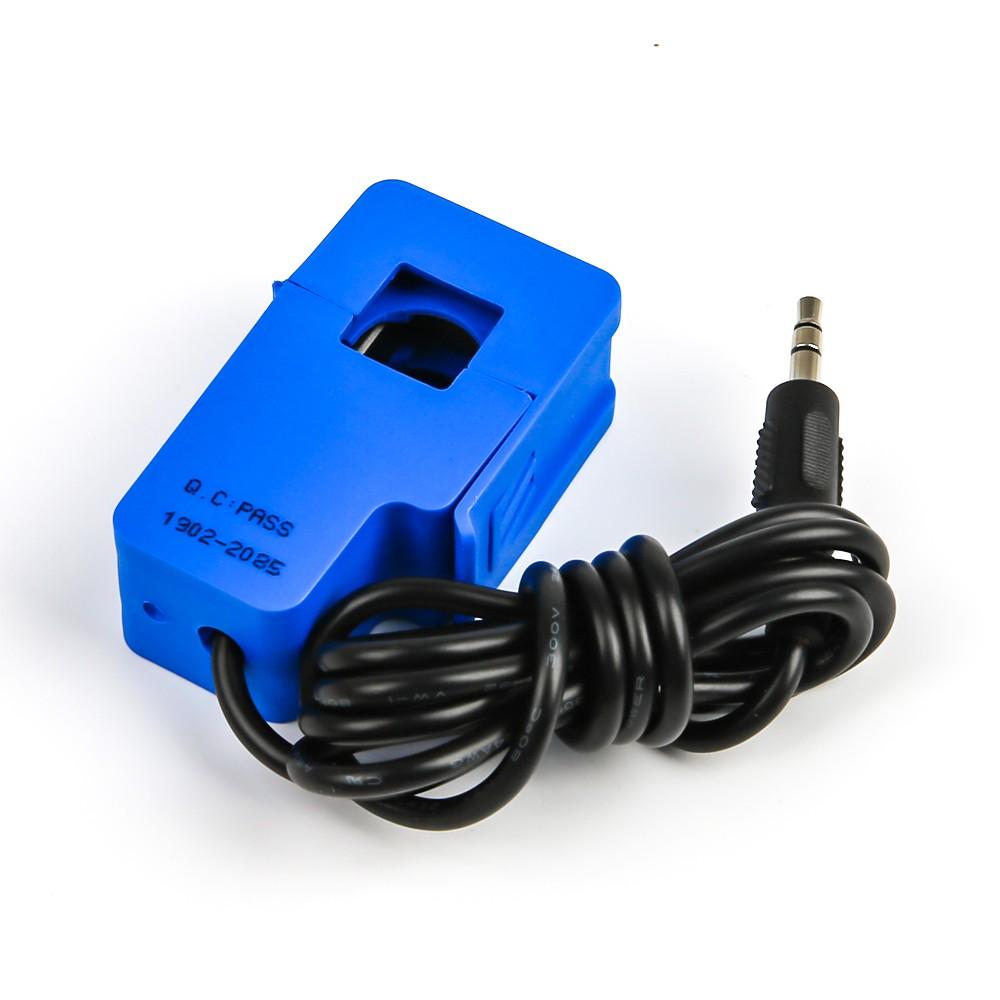

SCT-013 30A is a Non-invasive AC Current Sensor Transformer. It is a current transformer that can be used to measure AC current up to 100 amperes. This non-invasive current sensor clamped around the supply line can measure a load up to 30 Amps, and allow you to calculate how much current pass through it. It can be useful for building your own energy monitor or for building an over-current protection device for an AC load. SCT-013 30A can be used to detect a current of up to 30A. Simply clip it around the current source that you wish to measure and it will produce a (very) small AC voltage proportional to the current. The cable is terminated on one end with a standard 3.5mm jack (like a headphone jack).
Use this to build your own energy monitor and keep your power usage down, or use it to build an over-current protection device for an AC load. <a href="https://learn.openenergymonitor.org/electricity-monitoring/ct-sensors/interface-with-arduino">Useful information about SCT-013 Current Sensors</a>.
You may also look for:
<ul>
<li><a href="/product/sct-013-15a/">SCT-013-015 15A Non-invasive AC Current Sensor Transformer</a></li>
<li><a href="/product/sct-013-50a/">SCT-013-050 50A Non-invasive AC Current Sensor Transformer</a></li>
<li><a href="https://www.bromleysat.com/product/sct-013-100a/">SCT-013-000 100A Non-invasive AC Current Sensor Transformer</a></li>
</ul>
Package Includes:
<ul>
<li>1 x SCT-013-030 30A Non-invasive AC Current Transformer</li>
</ul>
</div>
<hr />
&nbsp;

SCT-013 30A

FREE UK Delivery
<hr />
Overview:
✔️ Frequency: 50HZ-150KHZ
✔️ Input Current : 0-30A
✔️ Output Mode: 0-1V @ 30mA
✔️ Output Plug: 3.5mm
✔️ Opening Size: 13 x 13mm/ 0.5″ x 0.5″(L*W)
✔️ Dielectric Strength: 6000V AC/1min
✔️ Meet UL94-V0 flame retardant properties

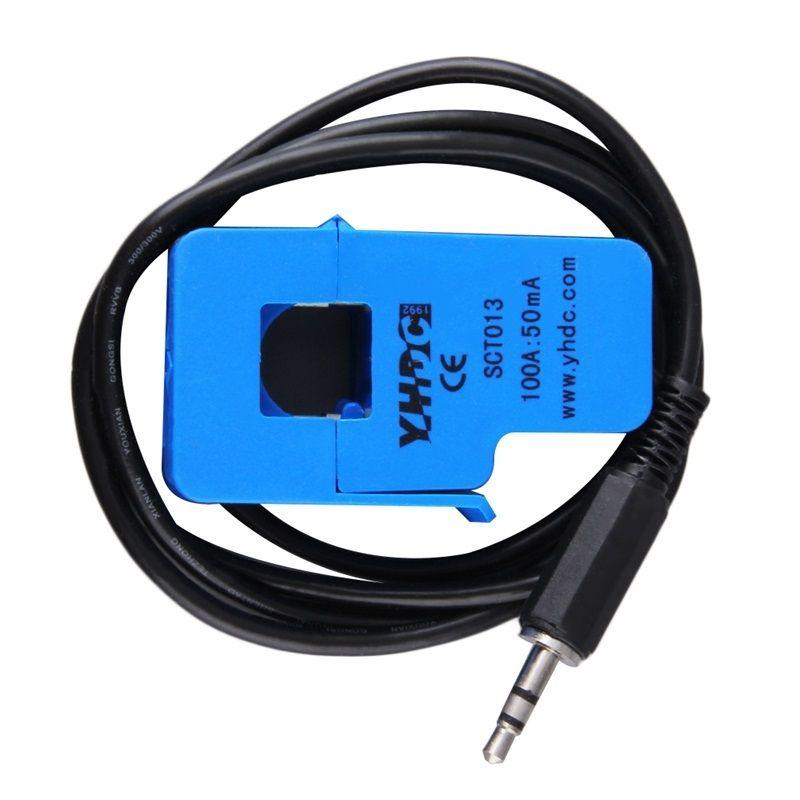

SCT-013 100A is a Non-invasive AC Current Sensor Transformer. It is a current transformer that can be used to measure AC current up to 100 amperes. This non-invasive current sensor clamped around the supply line can measure a load up to 100 Amps, and allow you to calculate how much current pass through it. It can be useful for building your own energy monitor or for building an over-current protection device for an AC load. SCT-013 100A can be used to detect a current of up to 100A. Simply clip it around the current source that you wish to measure and it will produce a (very) small AC voltage proportional to the current. The cable is terminated on one end with a standard 3.5mm jack (like a headphone jack).
Use this to build your own energy monitor and keep your power usage down, or use it to build an over-current protection device for an AC load. <a href="https://learn.openenergymonitor.org/electricity-monitoring/ct-sensors/interface-with-arduino">Useful information about SCT-013 Current Sensors</a>.
You may also look for:
<ul>
<li><a href="/product/sct-013-15a/">SCT-013-15A 15A Non-invasive AC Current Sensor Transformer</a></li>
<li><a href="/product/sct-013-30a/">SCT-013-030 30A Non-invasive AC Current Sensor Transformer</a></li>
<li><a href="https://www.bromleysat.com/product/sct-013-50a/">SCT-013-050 50A Non-invasive AC Current Sensor Transformer</a></li>
</ul>
Package Includes:
<ul>
<li>1 x SCT-013-000 100A Non-invasive AC Current Transformer</li>
</ul>
<hr />
&nbsp;

SCT-013 100A

FREE UK Delivery
<hr />
Overview:
✔️ Brand: YHDC
✔️ Clamp Opening: 13x13mm
✔️ Rated measurement input current: 100A
✔️ Maximum input current: 120A
✔️ Rated Output: 50mA
✔️ Maximum rated voltage: 660V 50Hz-1kHz
✔️ Accuracy: +-1%
✔️ Linearity: &lt;=0.2%
✔️ Cable length: 1m
✔️ Dimensions: 5.6&#215;3.1&#215;2.1cm
✔️Weight: 63g

<div class="productView-table-row">

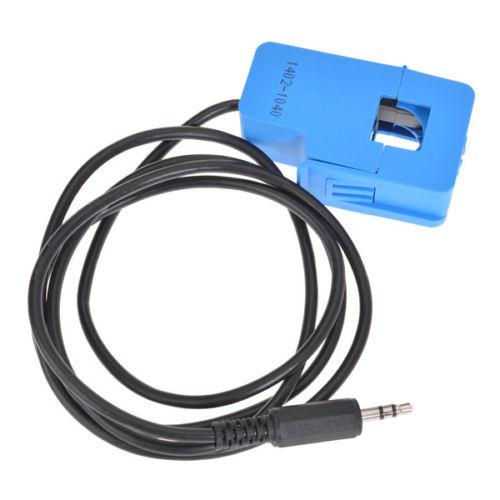

SCT-013 15A is a Non-invasive AC Current Sensor Transformer. It is a current transformer that can be used to measure AC current up to 100 amperes. This non-invasive current sensor clamped around the supply line can measure a load up to 15 Amps, and allow you to calculate how much current pass through it. It can be useful for building your own energy monitor or for building an over-current protection device for an AC load. SCT-013 15A can be used to detect a current of up to 15A. Simply clip it around the current source that you wish to measure and it will produce a (very) small AC voltage proportional to the current. The cable is terminated on one end with a standard 3.5mm jack (like a headphone jack).
Use this to build your own energy monitor and keep your power usage down, or use it to build an over-current protection device for an AC load. <a href="https://learn.openenergymonitor.org/electricity-monitoring/ct-sensors/interface-with-arduino">Useful information about SCT-013 Current Sensors</a>.
You may also look for:
<ul>
<li><a href="/product/sct-013-30a/">SCT-013-030 30A Non-invasive AC Current Sensor Transformer</a></li>
<li><a href="/product/sct-013-50a/">SCT-013-050 50A Non-invasive AC Current Sensor Transformer</a></li>
<li><a href="https://www.bromleysat.com/product/sct-013-100a/">SCT-013-000 100A Non-invasive AC Current Sensor Transformer</a></li>
</ul>
Package Includes:
<ul>
<li>1 x SCT-013-015 15A Non-invasive AC Current Transformer</li>
</ul>
</div>
<hr />
&nbsp;

SCT-013 15A

FREE UK Delivery
<hr />
Overview:
✔️ Brand: YHDC
✔️ Input current (RMS): 15A.
✔️ Max current: 40A.
✔️ Work temperature: -25℃～+70℃.
✔️ Storage temperature: -30℃～+90℃.
✔️ Work voltage: 660V.
✔️ Frequency range: 50Hz-1KHz.
✔️ Dielectric strength: 3.5KV 50Hz 1min
✔️ Cable length: 1m
✔️ Dimensions: 5.6&#215;3.1&#215;2.1cm
✔️ Weight: 63g

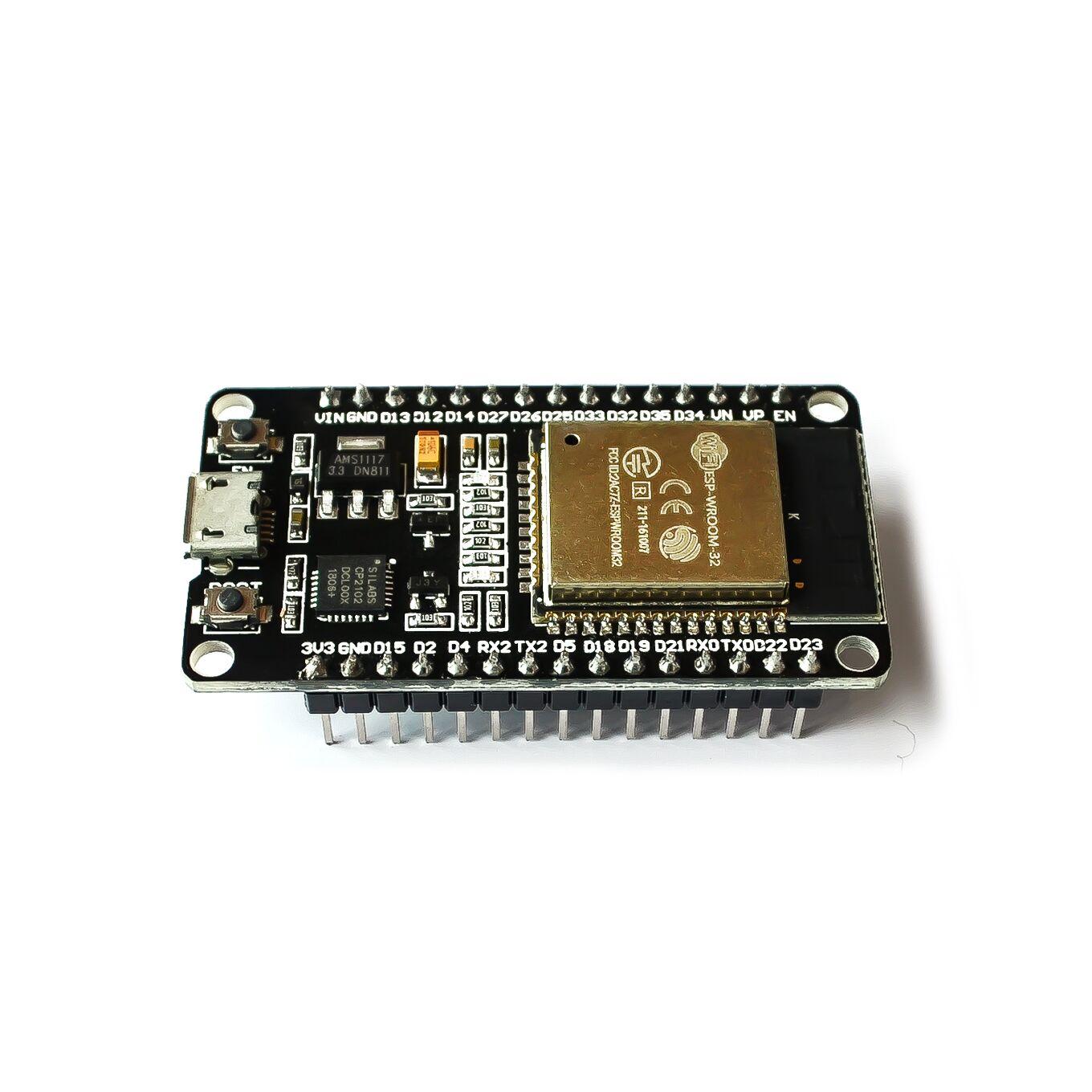

The ESP32-S is a very flexible IOT board that is a significant superset of the popular ESP8266 line. Compared to the ESP8266, it primarily adds significantly more I/O that is very flexible in its functionality as well as Bluetooth. The downside is that being newer, the support is not as extensive as it is for the ESP8266 for some of the unique features such as using the hall effect sensor, IR remote or I2S buses, but items such as CAN bus and capacitive touch are supported in the Arduino IDE.
Besides the IDE, ESP32-S can also be programmed using the Espressif IDF, Microphytoon, LUA and other programming environments.
Compared to the typical AVR processor of the standard Arduino ESP32-S also has a larger 4 MB of Flash memory for program space and runs at clock speeds of 160 MHz and can sometimes optionally be overclocked to 240 MHz and therefore has a very fast processing speed. These can be used as a stand-alone MCU in place of something like an Arduino or it can be used as a peripheral in conjunction with another MCU just to provide WiFi, Bluetooth or other unique capabilities that it has.
The board incorporates 2 push buttons. One is labeled ‘EN‘ which is the Reset button. The other button is labeled ‘IO0‘ which is also called the Boot button. This button is used to download programs to the board.
The ESP32-S chip allows most of the I/O such as the serial ports and I2C to be multiplexed to any of the GPIO pins for flexibility.
Programming the Board
To communicate over USB, the board uses the CP2102 USB to UART bridge chip. If you experience any issues with connecting to the board, you may need to download a driver for this chip.
Drivers can be downloaded at this link: <a href="https://www.silabs.com/products/development-tools/software/usb-to-uart-bridge-vcp-drivers" target="_blank" rel="noopener noreferrer">https://www.silabs.com/products/development-tools/software/usb-to-uart-bridge-vcp-drivers</a>
You may also look for:
<ul>
<li><a href="/product/arduino-nano-ft232/">Arduino Nano V3.0 FT232 Mini-B USB</a></li>
<li><a href="/product/arduino-nano/">Arduino Nano V3.0 CH340 Mini-B USB</a></li>
</ul>
Package Includes :
<ul>
<li>1 x ESP32-S Development Board</li>
</ul>
<hr />
&nbsp;

ESP32-S Development Board WiFi & Bluetooth - Dual-Core CPU With Low Power Consumption

FREE UK Delivery. Receive 50p off on each ESP32 if you buy more than one.
<hr />
 Overview:
✔️ Microcontroller: Xtensa LX6 32-bit
✔️ Clock Speed: 160MHz
✔️ USB Converter: CP2102
✔️ USB Connector: Micro USB
✔️ Flash Memory: 4 MB
✔️ RAM: 512Kb
✔️ Digital I/O: 32 (26 usable)
✔️ PWM: 16 channels
✔️ Analog Outputs: 2 channels, 8-bit
✔️ Analog Inputs: 16 channels, 12-bit
✔️ Communications: 3 Serial, 4 SPI, 2 I2C, CAN bus, I2S Stereo
✔️ Integrated Sensors: IR remote, Hall sensor, temperature sensor, touch sensors, pulse counter
✔️ Bluetooth: 4.2 and BLE (Bluetooth Low Energy)
✔️ WiFi: Built-in 802.11 b/g/n 2.4GHz
✔️ Buttons: EN (Reset) and IO0 (Boot)
✔️ Programming: Compatible with Arduino IDE
✔️ Pin Spacing: 0.1″ centers. Breadboard compatible
✔️ Operating Voltage: 3.3V internal power and I/O. 5V-9V external power with on-board regulator

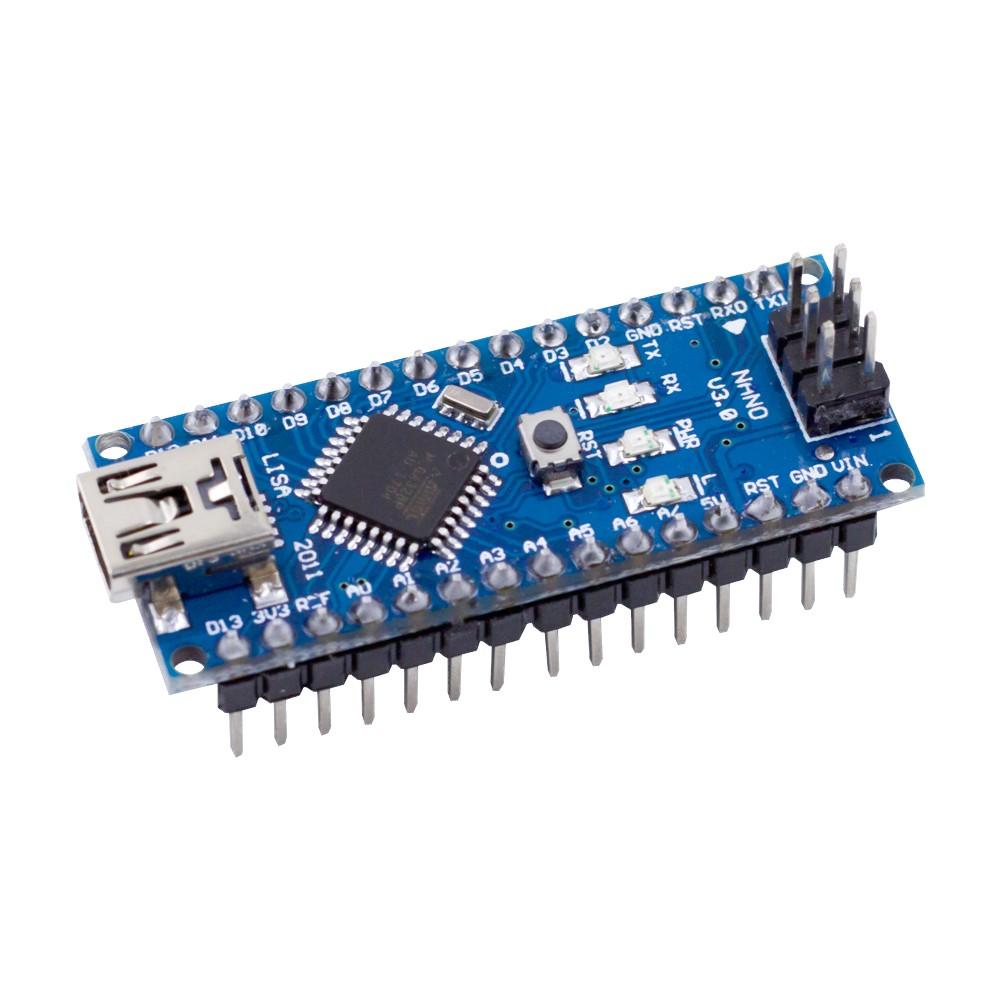

The Arduino Nano FT232 is a small, complete, and breadboard-friendly board based on the ATmega328. It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.
The Nano 3.0 has a number of facilities for communicating with a computer, another Arduino, or other microcontrollers. The ATmega328 provides UART TTL (5V) serial communication, which is available on digital pins 0 (RX) and 1 (TX). An FTDI FT232RL on the board channels this serial communication over USB and the FTDI drivers (included with the Arduino software) provide a virtual com port to software on the computer. The Arduino software includes a serial monitor which allows simple textual data to be sent to and from the Arduino board. The RX and TX LEDs on the board will flash when data is being transmitted via the FTDI chip and USB connection to the computer (but not for serial communication on pins 0 and 1).
You may also look for:
<ul>
<li><a href="/product/arduino-nano/">Arduino Nano V3.0 CH340 Mini-B USB</a></li>
<li><a href="/product/esp32-s-development-board-wifi-bt/">ESP32-S Development Board</a></li>
</ul>
Package Includes :
<ul>
<li>1 x Arduino Nano v3.0 FT232 Mini-B USB ( soldered )</li>
</ul>
<hr />
&nbsp;

Arduino Nano V3.0 FT232 Mini-B USB

FREE UK Delivery. Receive 50p off on each Arduino Nano if you buy more than one.
<hr />
Overview:
✔️ Microcontroller: ATmega328
✔️ Operating Voltage (logic level): 5V
✔️ Input Voltage (recommended): 7-12V
✔️ Input Voltage (limits): 6-20V
✔️ Digital I/O Pins: 14 (of which 6 provide PWM output)
✔️ Analog Input Pins: 8
✔️ DC Current per I/O Pin: 40mA
✔️ Flash Memory: 32KB (ATmega328) of which 2 KB used by bootloader
✔️ SRAM: 2KB (ATmega328)
✔️ EEPROM: 1KB (ATmega328)
✔️ Clock Speed: 16 MHz

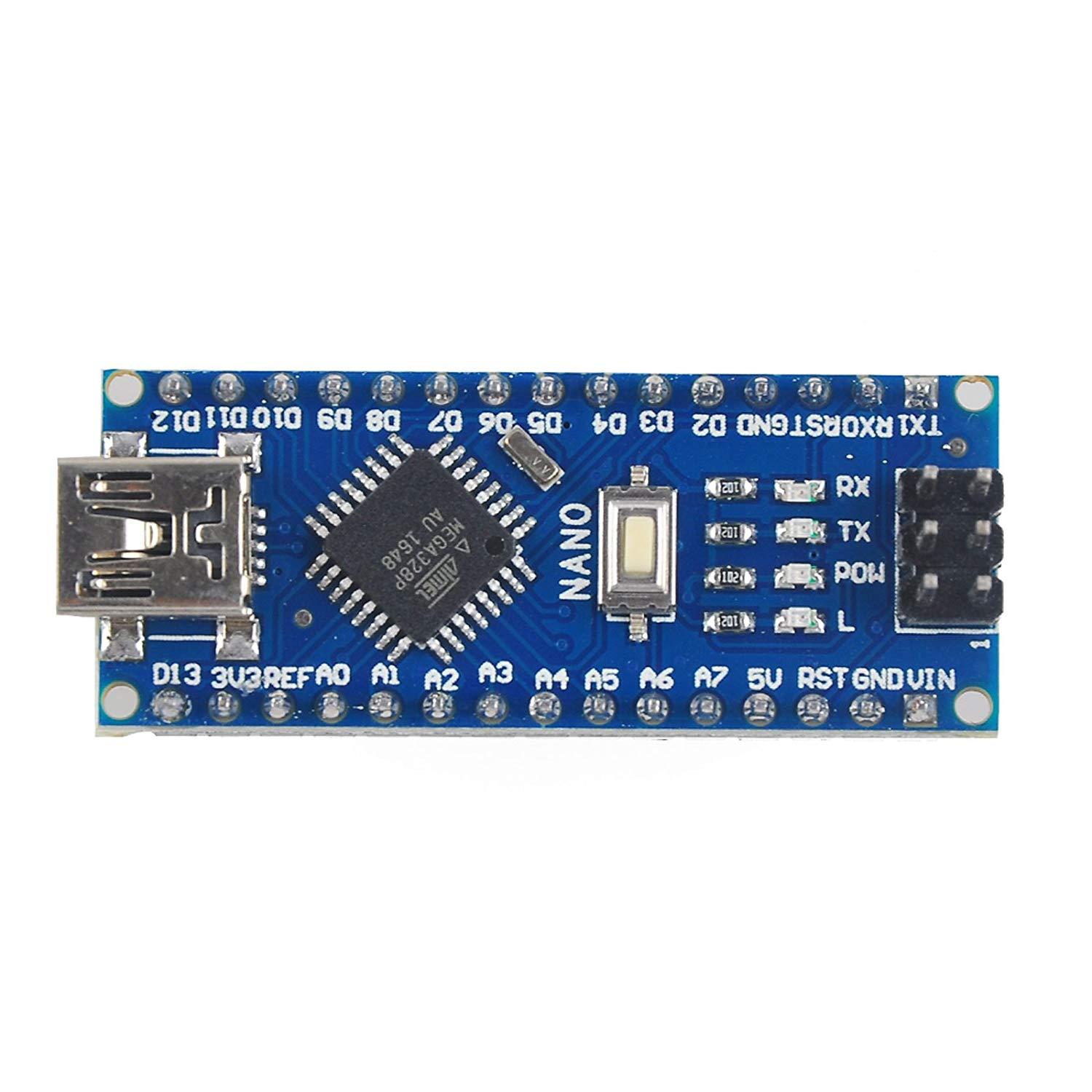

The Arduino Nano V3.0 CH340 Mini-B USB is based on the famous Arduino platform and does all the functions of Uno, but with a smaller footprint. Nano CH340 Soldered is vital for your small project where you don’t need much of a pin-outs but the small size is very important to make it look good.
<div>
The Nano equips a low-cost USB-Serial Chip that makes it less in price than Nano with FTDI USB-Serial Chip used on older versions of Arduino Nano. The Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano R3). It has more or less the same functionality of the Arduino Uno but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.
The Nano can be power via the mini-USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.
The size of Nano V3.0 with CH340 Chip is only 43 mm x 18 mm; it comes with 6 PWM I/O from the total of 14 digitals I/O, 8 analog inputs, 16Mhz clock speed and 32kB of flash memory.
You may also look for:
<ul>
<li><a href="/product/arduino-nano-ft232/">Arduino Nano V3.0 FT232 Mini-B USB</a></li>
<li><a href="/product/esp32-s-development-board-wifi-bt/">ESP32-S Development Board</a></li>
</ul>
<div>Package Includes:</div>
<div>
1 x Arduino Nano V3.0 CH340 Mini-B USB
<hr />
&nbsp;
</div>
</div>

Arduino Nano V3.0 CH340 Mini-B USB

FREE UK Delivery. Receive 50p off on each Arduino Nano if you buy more than one.
<hr />
Overview:
✔️ Operating Voltage (logic level): 5V
✔️ With Soldered Connector
✔️ 8 analog inputs ports: A0 ~ A7
✔️ 14 Digital input / output ports: TX, RX, D2 ~ D13
✔️ 1 pair of TTL level serial transceiver ports RX / TX
✔️ Using Atmel Atmega328P-AU MCU
✔️ There is a bootloader installed in it
✔️ Standard 0.1” spacing DIP (breadboard friendly).
✔️ Manual reset switch.

Shop
