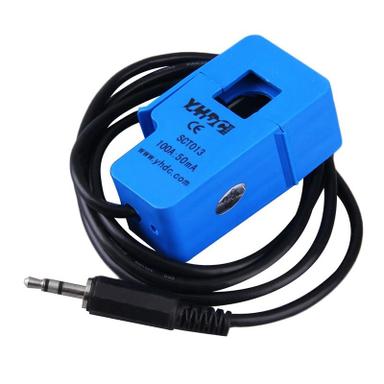

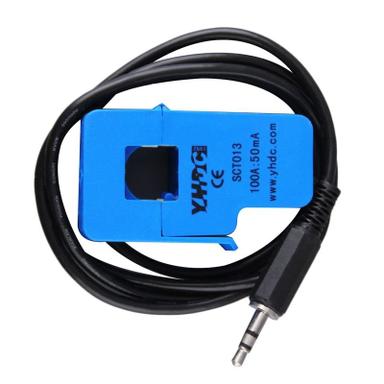

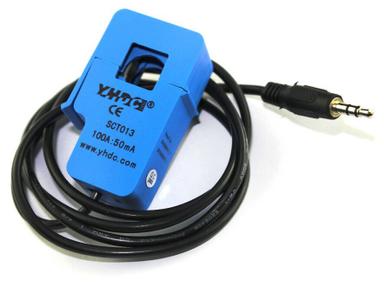

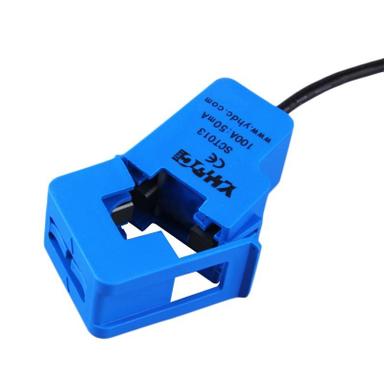

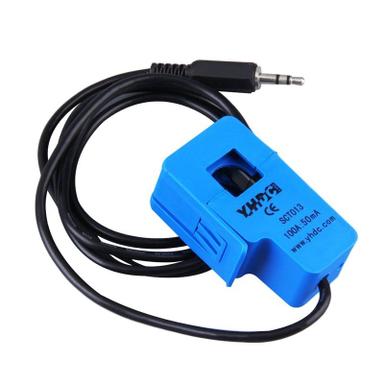

SCT-013 100A is a Non-invasive AC Current Sensor Transformer. It is a current transformer that can be used to measure AC current up to 100 amperes. This non-invasive current sensor clamped around the supply line can measure a load up to 100 Amps, and allow you to calculate how much current pass through it. It can be useful for building your own energy monitor or for building an over-current protection device for an AC load. SCT-013 100A can be used to detect a current of up to 100A. Simply clip it around the current source that you wish to measure and it will produce a (very) small AC voltage proportional to the current. The cable is terminated on one end with a standard 3.5mm jack (like a headphone jack).

Use this to build your own energy monitor and keep your power usage down, or use it to build an over-current protection device for an AC load. Useful information about SCT-013 Current Sensors.

You may also look for:

Package Includes:

  • 1 x SCT-013-000 100A Non-invasive AC Current Transformer
